Centos安装Freeradius+daloRADIUS配合ROS PPPOE验证

发布时间:July 27, 2012 // 分类:RADIUS,ROS // 3 Comments

之前有介绍安装Radiusmanager做为ROS验证服务器,不过Radiusmanager为商业软件,喜欢开源软件的可使用daloRADIUS替代,功能同样强大。
LAMP环境安装:

yum -y install httpd httpd-devel mysql mysql-server mysql-devel
yum -y install php php-devel php-mysql php-common php-gd php-mbstring php-mcrypt php-xml
/etc/init.d/httpd start
/etc/init.d/mysqld start
chkconfig httpd on
chkconfig mysqld on
mysqladmin -u root password 'newpassowrd'

Freeradius安装:

yum install freeradius2 freeradius2-mysql freeradius2-utils
/etc/init.d/radiusd start
chkconfig radiusd on

测试Freeradius:

radiusd -X
Listening on authentication address * port 1812
Listening on accounting address * port 1813
Listening on command file /var/run/radiusd/radiusd.sock
Listening on authentication address 127.0.0.1 port 18120 as server inner-tunnel
Listening on proxy address * port 1814
Ready to process requests.

配置Freeradius支持sql:

cat /etc/raddb/radiusd.conf
$INCLUDE sql.conf #调用sql.conf配置,去除之前的#
cat /etc/raddb/sites-enabled/default #下两段中添加sql
authorize {
    preprocess
    chap
    mschap
    digest
    suffix
    eap {
        ok = return
    }
    files
    sql
    expiration
    logintime
    pap
}
accounting {
    detail
    unix
    radutmp
    sql
    exec
    attr_filter.accounting_response
}

设置Freeradius sql连接信息:

cat /etc/raddb/sql.conf
    database = "mysql"
    driver = "rlm_sql_${database}"
    server = "localhost"
    #port = 3306
    login = "radius"
    password = "radiupass"
      radius_db = "radius"

安装DaloRADIUS

wget http://downloads.sourceforge.net/project/daloradius/daloradius/daloradius0.9-9/daloradius-0.9-9.tar.gz
tar zxvf daloradius-0.9-9.tar.gz
mv daloradius-0.9-9 /var/www/html/daloradius
chown -R apache:apache /var/www/html/daloradius

创建数据库并导入:

mysql -u root -p
mysql>create database radius;
mysql>grant all on radius.* to radius@localhost identified by "radpass";
mysql>exit;
mysql -uroot -p radius < /var/www/html/daloradius/contrib/db/mysql-daloradius.sql
mysql -uroot -p radius < /var/www/html/daloradius/contrib/db/fr2-mysql-daloradius-and-freeradius.sql

配置DaloRADIUS:

cat cat /var/www/html/daloradius/library/daloradius.conf.php
$configValues['CONFIG_DB_ENGINE'] = 'mysql';
$configValues['CONFIG_DB_HOST'] = 'localhost';
$configValues['CONFIG_DB_PORT'] = '3306';
$configValues['CONFIG_DB_USER'] = 'radius';
$configValues['CONFIG_DB_PASS'] = 'radpass';
$configValues['CONFIG_DB_NAME'] = 'radius';
$configValues['CONFIG_PATH_DALO_VARIABLE_DATA'] = '/var/www/daloradius/var'; #如在别目录需修改

添加RADIUS客户端:

cat /etc/raddb/clients.conf
client 192.168.1.21 {
    secret        = root
    shortname    = ROS
}

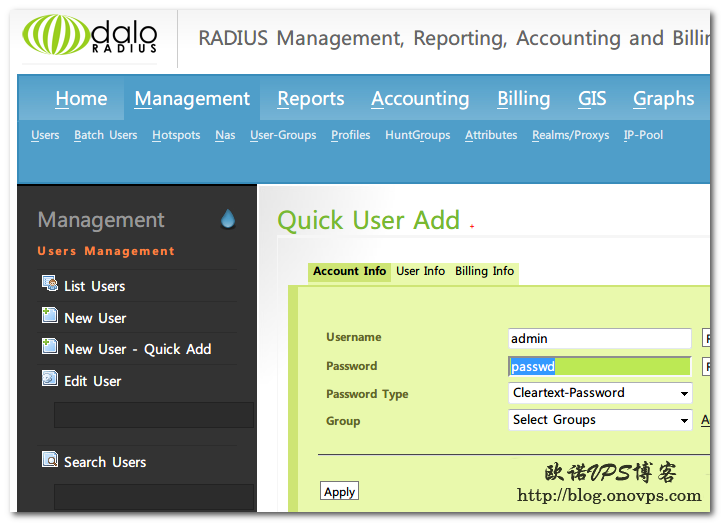

通过浏览器访问www.haiyun.me/daloradius即可登录管理,默认账号:administrator,密码:radius。
Daloradius新建用户测试,ROS端配置RADIUS请参考:安装Radiusmanager做为ROS验证服务器
通过Daloradius管理界面可查看在线用户:

ROS配置PPPOE服务器使用Freeradius+Raidusmanager验证管理

发布时间:July 26, 2012 // 分类:RADIUS,ROS // No Comments

1.ROSPPPOE服务器配置

ip pool add name=pppoe ranges=192.168.2.2-192.168.2.254
#新建PPPOE客户端IP池
ppp profile set default local-address=pppoe remote-address=pppoe dns-server=8.8.8.8,4.4.4.4
#新建PPPOE模板
interface pppoe-server server add service-name=pppoe interface=ether2 authentication=pap \
default-profile=default one-session-per-host=yes keepalive-timeout=10 disabled=no
#开启并设置PPPOE服务器
ppp secret add name=user password=passwd service=pppoe
#使用本地pap验证,新建PPPOE用户

2.ROS端配置使用RADIUS验证:

ppp aaa set use-radius=yes
#允许使用RADIUS认证
radius add address=192.168.1.22 secret=root service=ppp authentication-port=1812 \
accounting-port=1813 disabled=no
#设置RADIUS服务器地址,验证端口,验证服务
radius incoming set accept=yes port=1700
#允许RADIUS端断开用户PPP连接

3.Radiusmanager端配置,新建NAS,即ROS客户端:
新建用户,即PPPOE客户:
测试PPPOE登录:
Radiusmanager免费开源替代产品Daloradius请参考ROS使用Daloradius+Freeradius验证

Centos安装配置Radiusmanager3.9

发布时间:July 25, 2012 // 分类:RADIUS // No Comments

关闭SElinux:

cat /etc/sysconfig/selinux
SELINUX=disabled
reboot #重启生效

安装httpd和mysql:

yum install -y httpd mod_ssl php php-common php-gd php-pear php-pecl-memcache php-mhash php-xml gcc gcc-c++
yum install -y mysql-devel curl php-mysql php-mcrypt compat-libstdc++-33 libtool-ltdl-devel
/etc/init.d/mysqld start
/etc/init.d/httpd start
chkconfig httpd on
chkconfig mysqld on
/usr/bin/mysqladmin -u root password 'newpassowrd' #设置Mysql root密码
#下面脚本用于新建radiusmanger数据库和用户,可自行修改。
cat >> mysql-temp.sql << END
CREATE DATABASE radius;
CREATE DATABASE conntrack;
CREATE USER 'radius'@'localhost' IDENTIFIED BY 'radius123';
CREATE USER 'conntrack'@'localhost' IDENTIFIED BY 'conn123';
GRANT ALL ON radius.* TO radius@localhost;
GRANT ALL ON conntrack.* TO conntrack@localhost;
END
mysql -u root -p < mysql-temp.sql

安装inocube:

wget http://www.dmasoftlab.com/cont/download/ioncube_loaders_lin_x86.tar.gz
tar zxvf ioncube_loaders_lin_x86.tar.gz
cp -r ioncube /usr/local/

配置PHP加载inocube:

php -v #查看php版本,加载inocube对应版本。
cat >>/etc/php.ini << END
zend_extension=/usr/local/ioncube/ioncube_loader_lin_5.1.so
END
/etc/init.d/httpd restart
php -m|grep ioncube #查看是否成功加载ioncube模块

安装freeradius:

wget http://www.dmasoftlab.com/cont/download/freeradius-server-2.1.8-dmamod-1.tar.gz
tar zxvf freeradius-server-2.1.8-dmamod-1.tar.gz
cd freeradius-server-2.1.8
./configure
make
make install
chmod 644 /usr/local/etc/raddb/dictionary
chown apache /usr/local/etc/raddb
chown apache /usr/local/etc/raddb/clients.conf
radiusd -X

修改网卡MAC用于通过验证:

cat >> /etc/sysconfig/network-scripts/ifcfg-eth0 <<EOF
MACADDR=00:D0:09:B8:B7:34
END
/sbin/ifconfig eth0 down
/sbin/ifconfig eth0 hw ether 00:D0:09:B8:B7:34
/sbin/ifconfig eth0 up

安装radiusmanager:

wget http://deluxsola.googlecode.com/files/radiusmanager-3.9.0.tar.gz
tar zxvf radiusmanager-3.9.0.tar.gz
cd radiusmanager-3.9.0
./install.sh
